WW720-55 Sigma EN ES Electric Pressure Reducing Valve AS5081, Watermark

Features

  • Line pressure driven – Independent operation
  • Solenoid controlled
  • Low power consumption
  • Wide ranges of pressures and voltages
  • Normally Open, Normally Closed or Last Position
  • In-line serviceable – Easy maintenance
  • Double chamber design
  • Moderated valve reaction
  • Protected diaphragm
  • Flexible design – Easy addition of features
  • Variety of accessories – Perfect mission matching
  • “Y” or angle, wide body – Minimized pressure loss (angle pattern in “00” Series)
  • Semi-straight flow – Non-turbulent flow
  • Stainless Steel raised seat – Cavitation damage resistant
  • Obstacle free, full bore – Uncompromising reliability
  • V-Port Throttling Plug – Low flow stability

Description

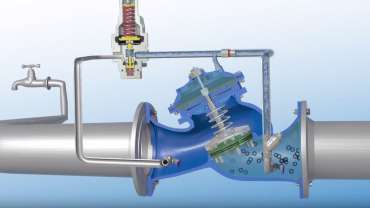

The Model 720-55 Pressure Reducing Valve with Solenoid Control is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand or varying upstream pressure. The valve opens and shuts off in response to an electric signal.
