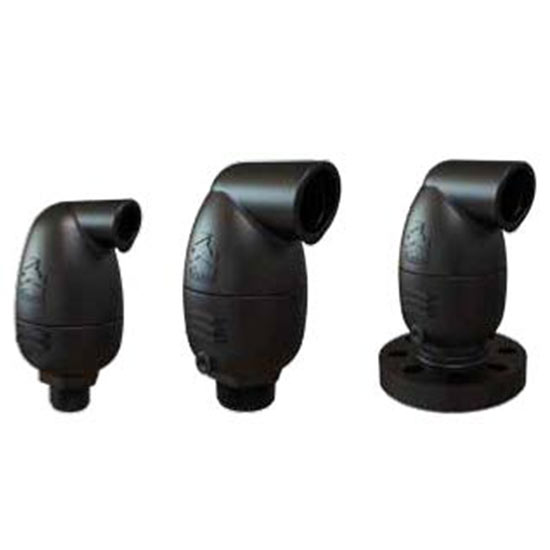

WW-C30-P Combination PN16 Air Release Valve Threaded, AS4956 approved & WSAA appraised

Features

  • Wide range of sizes DN20, DN25, DN50
  • Approved to AS4956 & AS4020 for drinking water
  • Valves appraised by WSAA (PA 2042)
  • Valves MRWA approved
  • Optional surge protection addition to valves
  • Optional inflow protection addition to valves
  • Extremely low-pressure sealing
  • Threaded and optional flanged versions
  • Outlet of 2″ valve has a 2″ BSP female thread
  • Outlet of 3/4″ and 1″ valves have a 20mm hole (threaded on request)

Description

Bermad C30 is a high-quality combination air valve suited for a variety of water networks and operating conditions. It evacuates air during pipeline filling, allows the efficient release of air pockets from pressurised pipes, and enables large volume air intake in the event of network draining.

With its advanced aerodynamic design, this double orifice valve provides excellent protection against air accumulation and prevents vacuum formation, with improved sealing in low pressure.

Options available on 50mm valves are surge protection or inflow protection kits.

The valves supplied in Australia are full certified for drinking water to approval AS4956 & AS4020 and WSAA Appraised & MRWA
