Irrigation Magflow Meters – NMI Approved (Model MUT2200)
Features
- NMI M10 Approved
- Maintenance free
- Sizes 15mm – 1000mm flanged
- 200,000 line inbuilt active data logger
- Available in 12-24Vac/dc, battery or solar powered
- Compact or remote mountable converter display
- Pulse output
- Alarm contact output
- 4-20mA output (when externally powered)
- Modbus RS485 communication (when externally powered)
- PN16 , PN25 or PN40 pressure ratings available
- Ebonite liner standard (65mm size and larger)
- Teflon liner standard (50mm size and smaller)
- All flow tubes have fully potted internals
- Hastalloy electrodes
- Empty pipe detection
Description
Robust Sensor (MUT2200)
The MUT2200 sensor is ideal for harsh applications. It has fully potted internals to protect the coils against vibration and moisture ingress. Hastelloy C electrodes as standard and Ebonite hard rubber (Teflon for sizes 50mm and below). Has no moving parts and is maintenance free.

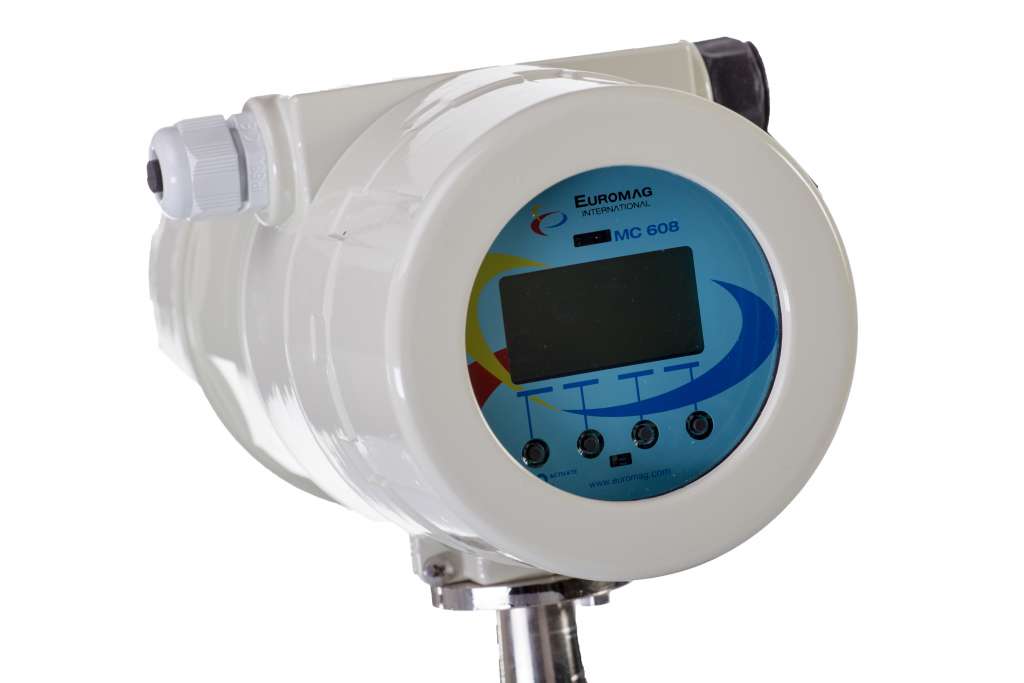

Sophisticated Display (MC608B)
The MC608 converter boast a large configurable display showing all critical flow data. Critical historical flow data can be easily extracted from the onboard 200,000 line data logger
Data Extraction video : For more more videos see below
Message Sent
Thanks for getting in touch, we will respond as quickly as possible.
If you have already received your password, you can download the pdf here.
Downloads
Live field support
Available Mon-Fri, 8am-6pm AEST.
Videos


Watch : Video on how to configure Euromag MC608 outputs

Watch : Video on how to download data logs from a MC608

Watch : Video on how to trouble shoot a Euromag MC608 converter

Euromag Range Demonstration for the Magflow Electromagenetic Flow Meters | Bermad Water Technologies
How Tos

How to download data logs from a Euromag MC608 converter

How to select a water meter that meets the NMI-M10 Australian pattern approval

How to read and configure the Euromag MC608 converter

How to design and install a Magflow meter to avoid trapped air

How to select the optimum irrigation meter
