IR-C10-P Combination PN12 Air Release Valve Flanged, AS4956 approved & WSAA appraised

Features

  • New PN12 pressure rating for valves (2018 model with black cover instead of red previously)
  • New valves sizes in DN50/80 in flanged
  • Valves approved for drinking water with AS4956 & AS4020 certification
  • Valves appraised by WSAA (PA 2042)
  • All valves fitted with plug in base for gauge or pressure check point fitment
  • All valves with extremely low pressure sealing feature
  • All  valves with threaded outlet to enable in field fitment of surge protection, assisted closure or inflow protection features
  • Extremely high air flow on 50mm valves making suitable for larger diameter pipeline air flow control and protection
  • 50mm and 80mm valves have a threaded outlet 50mm BSP

Description

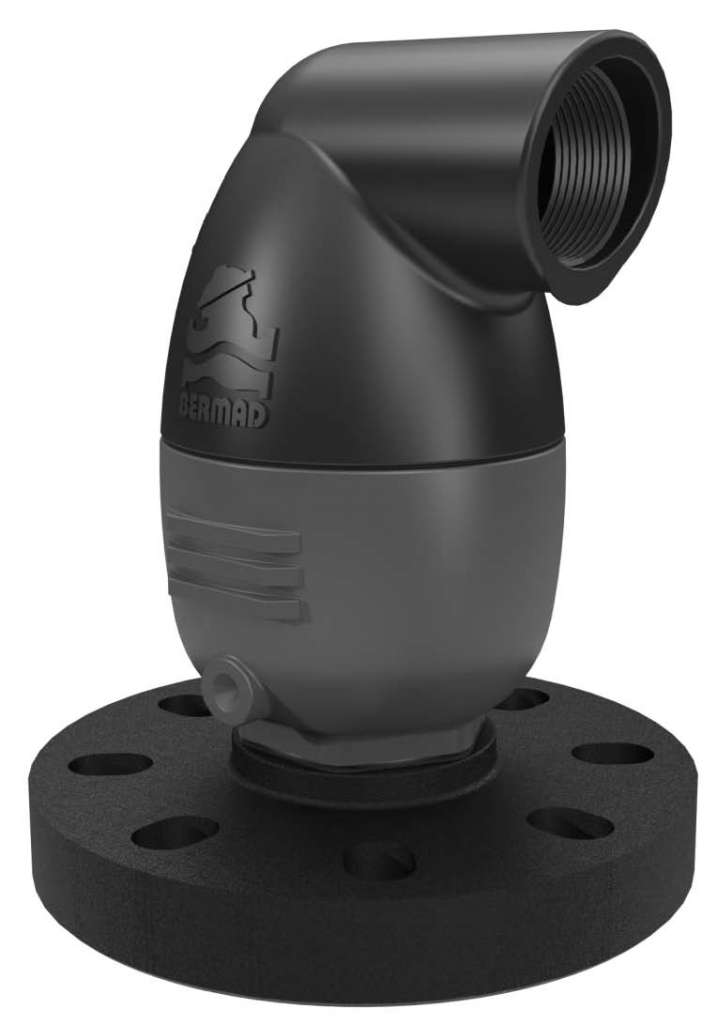

BERMAD C10 is a high quality flanged combination air valve designed for a variety of applications such as Irrigation Water and Drinking Water applications. It evacuates air during pipeline filling, allows efficient release of air pockets from pressurised pipes, and enables large volume air intake in the event of network draining.

With its advanced aerodynamic design and double orifice, this valve provides excellent protection against air accumulation and vacuum formation, with improved sealing in low pressure conditions

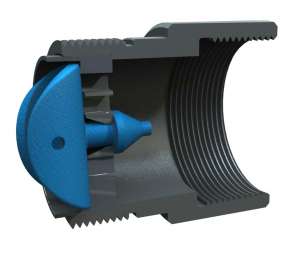

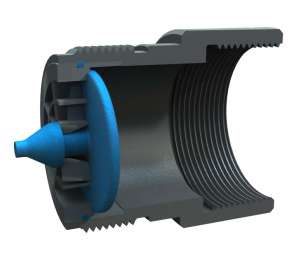

Options available are surge protection, assisted closure or inflow protection kits that can be added to the valve outlet.

The valves are fully approved for drinking water purposes and have certification to AS4956 & AS4020



Make enquiry How to order Price List 2024 Spare Parts Price List 2024

Downloads

View all product approvals
