Irrigation 100 Series Plastic Hydraulic Control Valves
Features
- Durable industrial grade valve design and construction uses glass-filled Nylon material to meet rough service conditions
- Ultra-high flow capacity with minimal pressure loss
- Designed for service on a wide range of pressure and flow conditions, from dripping to maximum flow
- Simple design with few parts guarantees easy in-line inspection and service
- Positive guided valve plug provides accurate motion and smooth regulation, to avoid chattering and slamming closed
- Versatile end connections allow a mix of different sizes and connection types
- Female thread, Flanged or PVC ‘Slip-on’ Glue or Grooved adapter (as add-on option)
- Articulated flange connections isolate the valve from line bending and pressure stresses
Description

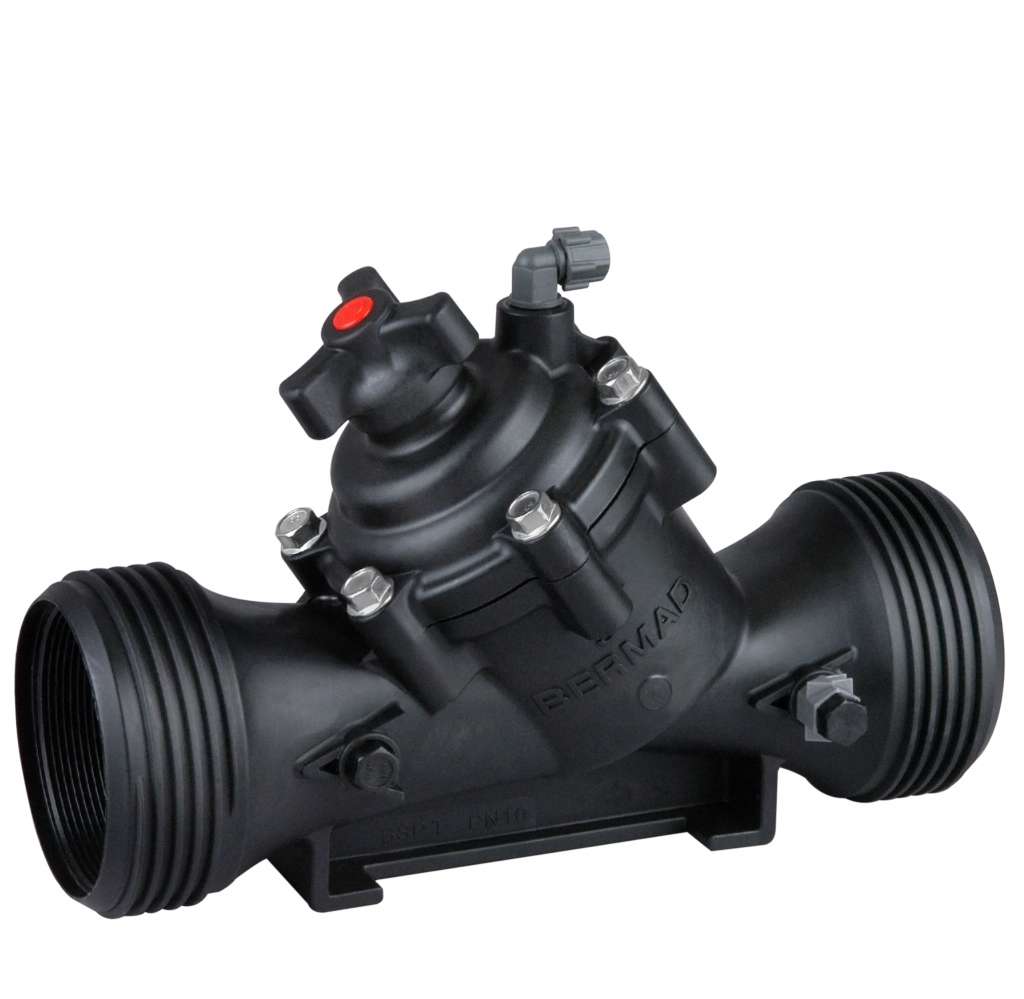

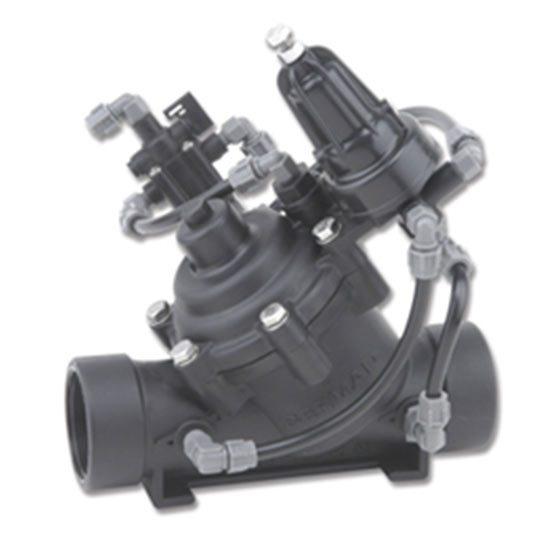

The Bermad IR-100 hYflow basic model diaphragm actuated, hydraulically operated valve is at the cutting edge of control valve design. It combines simple and reliable construction with superior performance, and is virtually free of the typical limitations associated with standard control valves.
Bermad’s automatic water control valves are designed for vertical or horizontal installation and are available in sizes of 1.5”, 2”, 2”L, 2.5”, 3”, 3”L, 4” & 6” DN: 40, 50, 50L, 65, 80, 80L, 100, 150R & 150.
Downloads
- Auto-cad 100 series 50mmL YCad
- Auto-cad 100 series 80mm A BPCad
- Auto-cad 100 series 80mm Y BPCad
- Auto-cad 100 series 80mm T BPCad
- Auto-cad drawing 100 series 80L A BPCad
- Auto-cad 100 series 80L A FLCad
- Auto-cad 100 series 80mm Y FLCad
- Autocad 100 series 80L BSPCad
- Autocad 100 series 80L flCad
- Auto-cad drawing 100 series 100 A FLCad
- Auto-cad 100 series 100 Y FLCad
- Autocad drawing 100 series 150R Y FLCad
- Auto-cad 100 series 150mm Dual FLCad
- Step File 50mm A 100 THUrl
- Step File 50mm Y 100 THUrl
- Step File 50Lmm Y 100 THUrl
- Step File 80mm Y 100 THUrl
- Step File 80mm Y 100 FLUrl
- Step File 80Lmm A 100 FLUrl
- Step File 80mm 100 Dual Head THUrl
- Step File 80Lmm 100 THUrl
- Step File 100mm Y 100 FLUrl
- Step File 100Lmm Y 100 FLUrl
- Step File 150Rmm Y 100 FLUrl
- Step File 150mm Y 100 FLUrl
