How to set an irrigation field valve

Master Irrigation valve settings with video tutorials

Mitch Jasnos
Mitch Jasnos
Irrigation Sales and Digital Product Manager

December 2016

A grape vine field with irrigating pipes below it

In irrigation schemes that run drip irrigation or sprinkler systems, valves regulate at specific pressures to maintain control. The valve’s ability to regulate is critical to achieving optimum irrigation performance. However, the setting of valves is often incorrect – resulting in an inefficient watering of the crop.

The issue

In irrigation schemes that run drip irrigation or sprinkler systems, valves regulate at specific pressures to maintain control. They are typically operated manually or electronically infield – turning on and off simultaneously to achieve the required pressure.

The valve’s ability to regulate is critical to achieving optimum irrigation performance. It controls the way both sprinkler and dripper maintain their desired flow.  However, the setting of valves is often incorrect – resulting in an inefficient watering of the crop.

Accessing resources that provide instructions on the exact method of setting the valve is difficult to find and rarely used.

100_1102

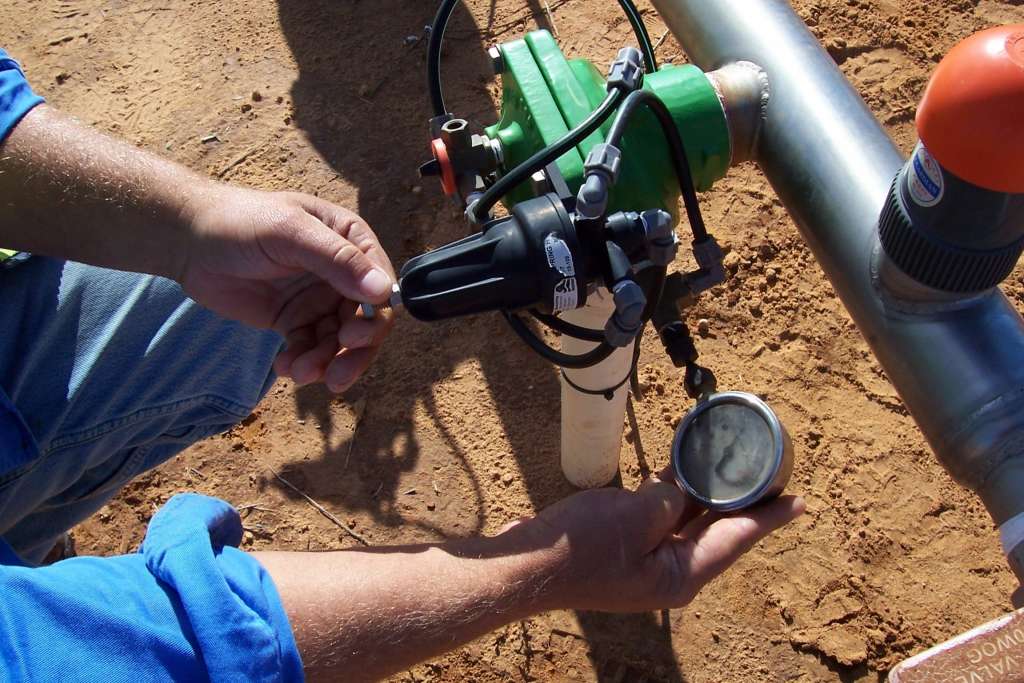

Setting a 400 series valve on the field.

The solution

As many contractors have access to smart phones and tablets with rural coverage, Bermad have developed irrigation specific tutorials for use on the field. Contractors can set the valve accurately by watching a YouTube clip on site.

The purpose of the tutorial is to provide a video guide that exacts the technique of correctly setting a control valve. The videos are brief and direct, highlighting elements that are important to the irrigation process.

Tutorials

We have selected the three high volume valves used in irrigation as a focus for our video tutorials. These valves include:

  • Bermad model 420 pressure reduction valve.
  • Bermad model 430 pressure sustaining valve.
  • Bermad model 423 pressure sustaining and reducing valve.
420

Bermad model 420 pressure reduction valve.



Watch the videos below to view a brief demonstration on how to set the following valves:

  • Bermad 420: Pressure Reducing Valve – How to Demonstration
  • Bermad 430: Pressure Sustaining Valve – How to Demonstration
  • Bermad 423: Pressure Sustaining & Reducing Valve – How to Demonstration

For more information on why the Bermad 100 and 400 series valves are the leading players in the market, watch the following brief videos discussing the features and benefits of the Bermad irrigation valves:

Supplementary information such as operational manuals and data sheets are available on our website and the Bermad YouTube channel.

Interested in this solution for your next project? Contact your nearest BWT state office to speak with one of our representatives.
