Name: Sanitary Magflow Meters (Model MUT2400)
Brand: Bermad

Features

IP68 rated suitable for washdown
Suitable for constant process temperatures:
- -25°C to 80°C (compact version)
- -40°C to 130°C (separate version)
High accuracy (+/-0.2% +/-2mm/s)
Available in 90-240Vac or 12-24Vac/dc (MC608A)
Available in battery version (MC608B)
Compact or remote mountable converter display
200,000 line inbuilt active data logger – standard
Pulse output
Alarm contact output
4-20mA output (external powered version)
Modbus RS485 communication (externally powered version)
Inbuilt 3G communications – optional
Sizes 15mm – 100mm flanged
PN16 rated (PN25 optional)
Teflon (PTFE) liner
Fully potted internals
Hastalloy C electrodes
Empty pipe detection

Description

Foodgrade Sensor

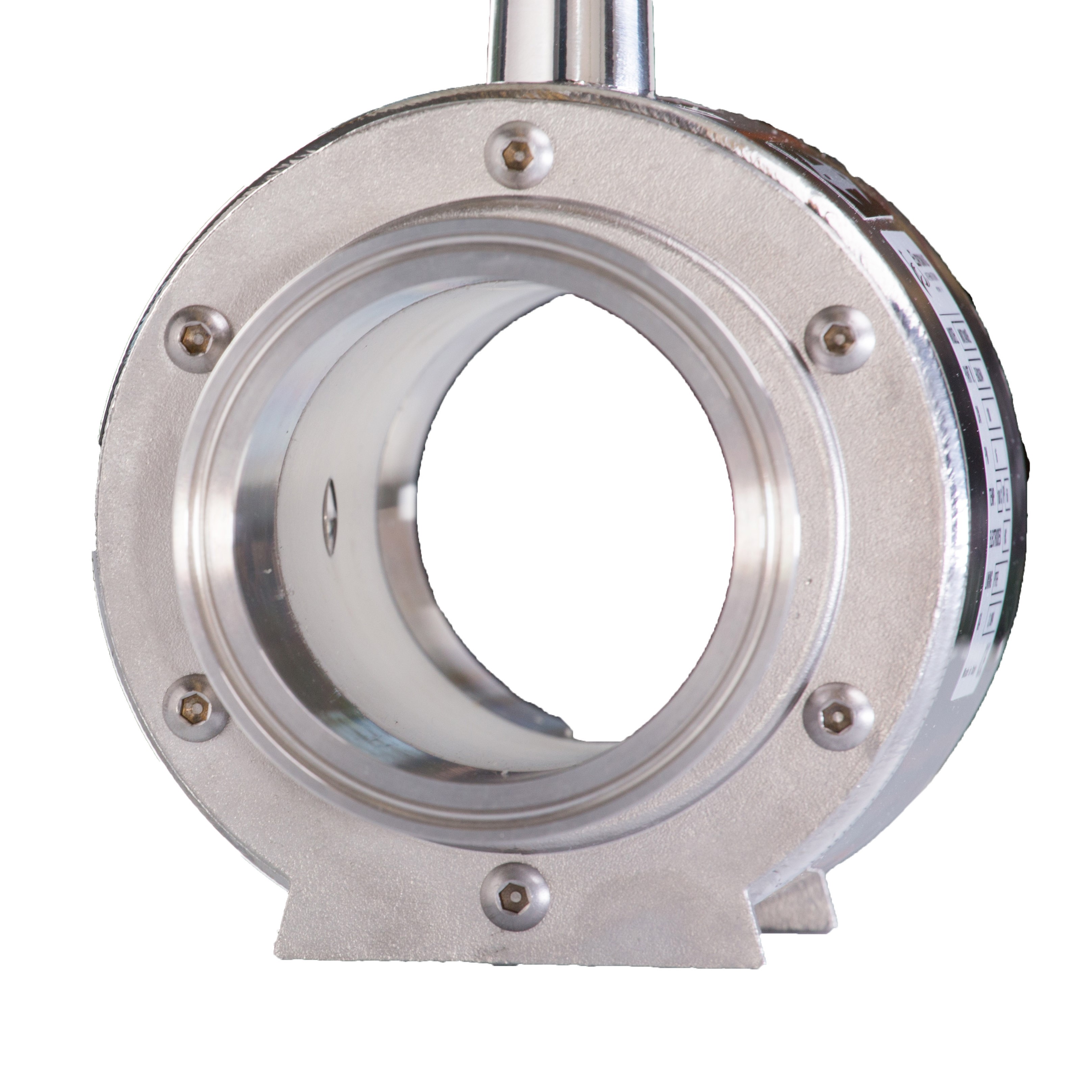

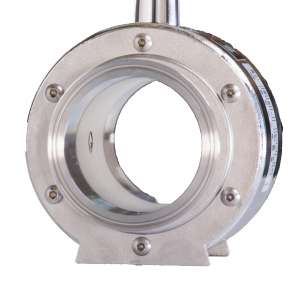

The MUT2400 sensor is designed for the food and beverage industry. It has a stainless steel body with TriClamp fittings or optional DIN11851 or SMS1146 fittings. The liner is Teflon (PTFE) as standard with Hastelloy C electrodes.

Sophisticated Display

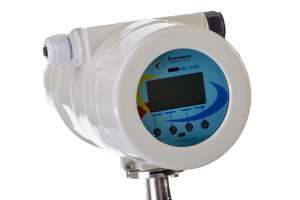

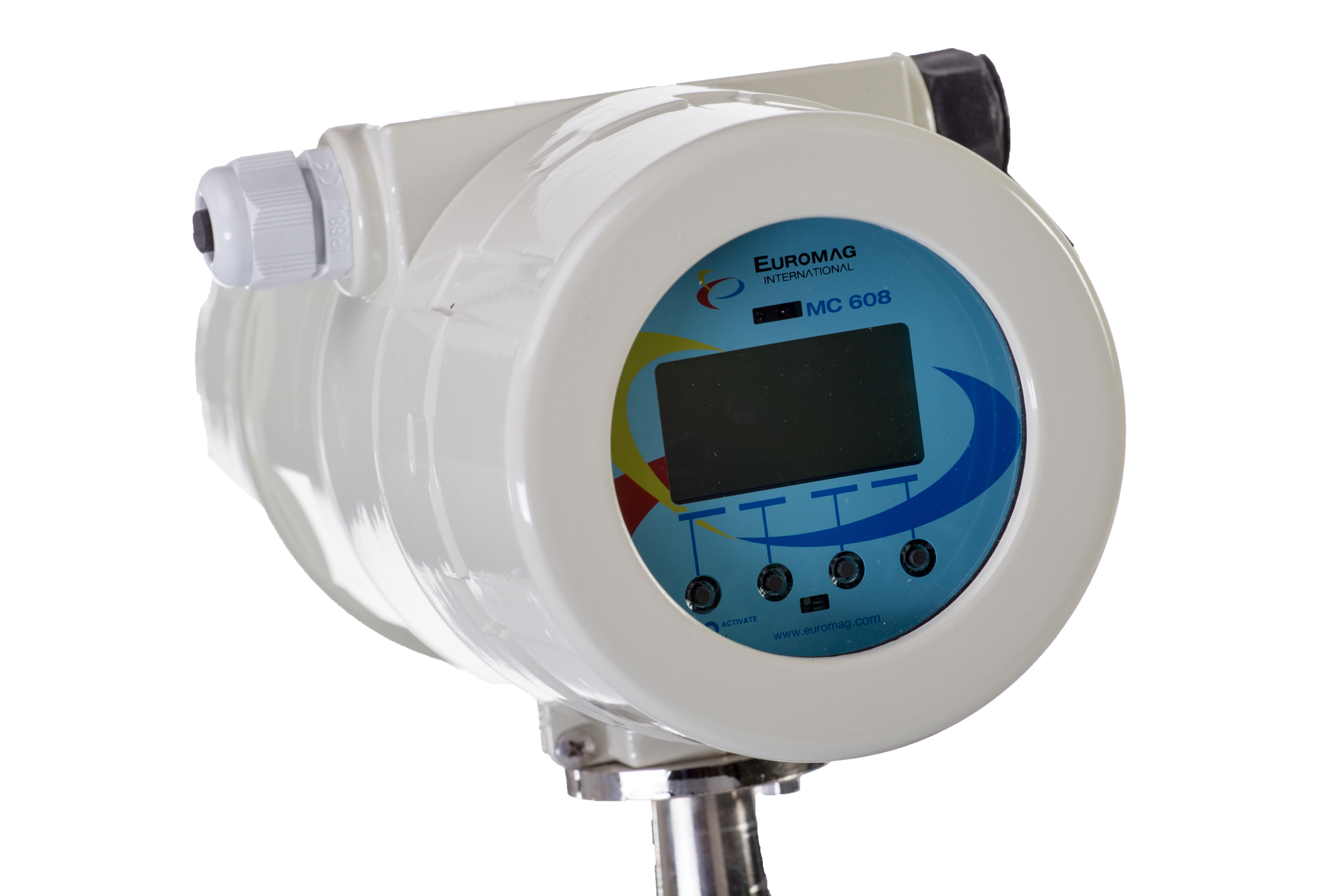

The MC608 converter boast a large configurable display showing all critical flow data – see below video “how to read and configure the Euromag MC608”

As standard it has 4-20mA, pulse and alarm outputs as well as ModBus RS485 communications – see below video “how to configure Euromag MC608 outputs”

Critical historical flow data can be easily extracted from the onboard 200,000 line data logger – see below video “how to download data logs from a MC608”
