Billing & Fire Magflow Meters (Model MUT2300)
Features
- OIML R49 & MID approved
- No straight pipe lengths required across range
- DN50 to DN300mm
- Low flow capabilities
- Fully potted internals
- Empty pipe detection
- PN10 to PN40
- Compatible with both the MC608 and MC406 converters
Description

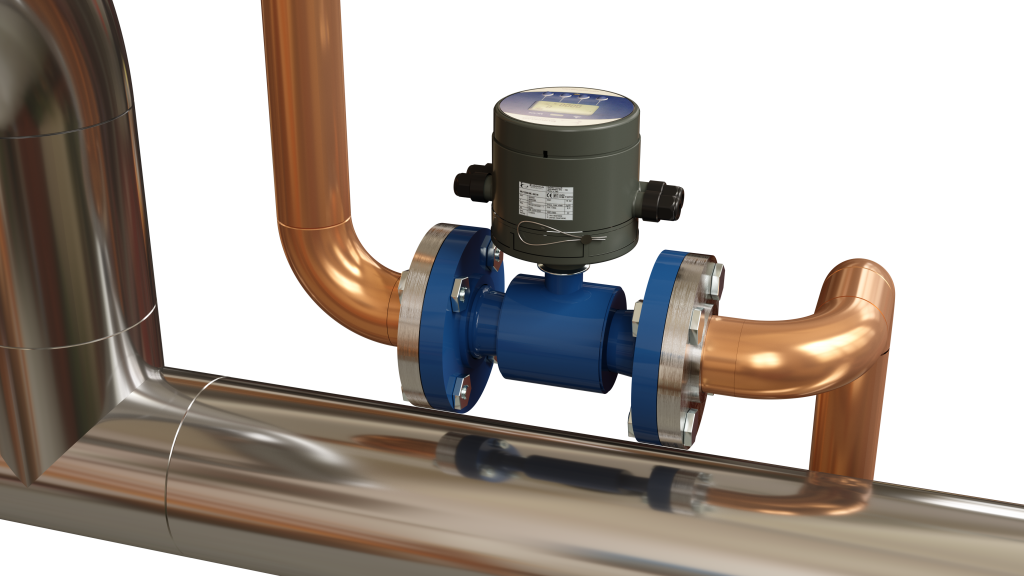

The Euromag MUT2300 requires no straight pipe lengths before and after the meter. It is OIML R49 certified for use with 0DN/0DN upstream and downstream straight pipe lengths – DN50 to DN300.
All meters come with an inbuilt active data logger for 3-6 years of historical data giving transparency of the meters performance and identifying potential issues.
Specially designed for measuring extremely low flows with negligible pressure loss, its high end wetted parts and robust construction make it suitable for nearly any application – mining, irrigation, sewage, trade waste, process, and chemical. All of the sensor’s internals are fully potted to protect the coils against vibration and moisture ingress.
The MUT2300 sensor is available with the MC608 converter (24V, 240V or solar) or the new state-of-the-art MC406 battery converter.
Downloads
- MID Approval 2200_2300 + MC406Pdf
- OIMLR49 Approval MUT2200_MUT2300 + MC406Pdf
- IP68 Certificate - MC406Pdf
- IP68 Certificate - MC608Pdf
- Certificate of CE ConformityPdf
- Certificate for Ebonite Approval for Potable WaterPdf
- Certificate for Ebonite liner ConformityPdf
- Certificate for ISO-9001_2008 QAPdf
- Certificate for WRASPdf
