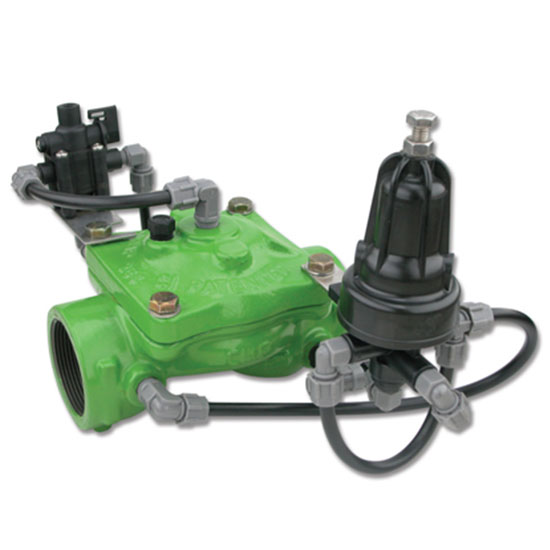

Pressure Reducing Valve IR-420-54-bK

Features

  • Line Pressure Driven Normally Closed PRV
    • Protects downstream systems
    • Closes upon control failure
    • Amplifies and relays weak remote command
  • Pressure Reducing Servo Pilot Controlled
    • Dynamic integrated needle valve
    • Settable to 0.5 bar; 7 psi
    • Very low hysteresis
  • Advanced Globe Hydro-Efficient Design
    • Unobstructed flow path
    • Single moving part
    • High flow capacity
  • Fully Supported & Balanced Diaphragm
    • Requires low actuation pressure
    • Excellent low-flow regulation performance
    • Progressively restrains valve closing
    • Prevents diaphragm distortion
  • Simple In-Line Inspection and Service

Description

The Bermad Model IR-420-54-bK is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to very low and stable preset downstream pressure, regardless of fluctuating demand or varying upstream pressure.

It is a Normally Closed valve, which opens in response to a remote pressure drop command and shuts in the absence of that command.
