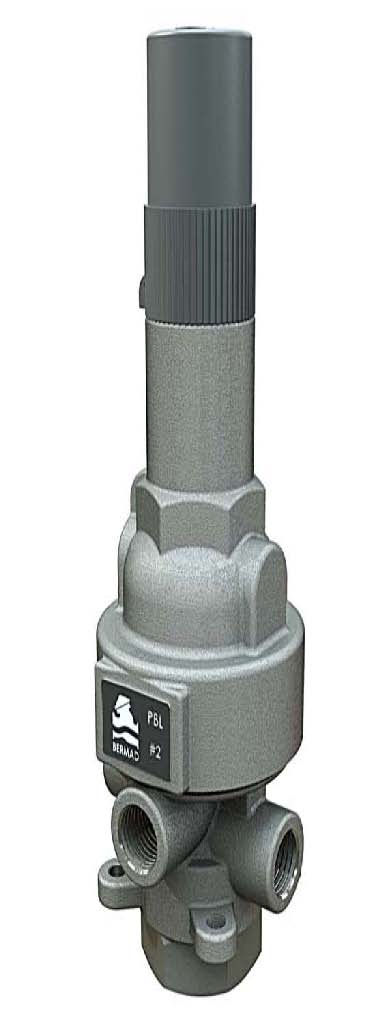

2PB-L Pressure reducing Pilot (Large Capacity)

Features

  • Internal or external pressure sensing
  • Differential pressure sensing
  • Direct pressure gauge installation
  • Typical Applications
  • Pressure reducing valves sizes 6-12″ (Standard model #2PBL)
  • Flow Control Valves sizes 8-16″ (ֺModified to differential sensing #2PBL-DR)
  • Closing surge control (additional feature 49) for sizes 10-16″ (Modified to external pressure sensing #2PBL-R)

Description

This is a direct acting valve—actuated by a pressure responsive diaphragm—which tends to reach equilibrium with the set spring force. Fully balanced trim ensures high accuracy and stability.

When used in a pressure reducing circuit, the pilot modulates closed as downstream pressure rises above set point.
