Flow Control Valve IR-970-MO-KVZ with optional BE electronic register Flow Control Valve IR-970-MO-KVZ with optional BE electronic register Flow Control Valve IR-970-MO-KVZ with optional BE electronic register
Flow Control Valve IR-970-MO-KVZ with optional BE electronic register
Flow Control Valve IR-970-MO-KVZ with optional BE electronic register
Flow Control Valve IR-970-MO-KVZ with optional BE electronic register

Features

  • Integrated “All-in-One” Control Valve
    • Saves space, cost and maintenance
  • Hydraulic Pressure Control
    • Line pressure driven
    • Limits fill-up rate and consumer over-demand
  • Magnetic Drive with Vacuum-Sealed Register
    • Water-free gear train mechanism
    • Reed-switch and Opto pulse-generating modes
    • Various pulse combinations
  • Internal Inlet & Outlet Flow Straighteners
    • Saves on straightening distances
    • Maintains accuracy
  • Integrated Flow Metering Calibration Device
  • Paddle-Type Hydro-Mechanical Flow Pilot
    • No added head loss
    • Wide setting range
  • Simple In-Line Inspection and Service

Description

The BERMAD Model IR-970-M0-KVZ integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. Serving as Flow Meter and Main Valve, it controls irrigation together with the irrigation controller.

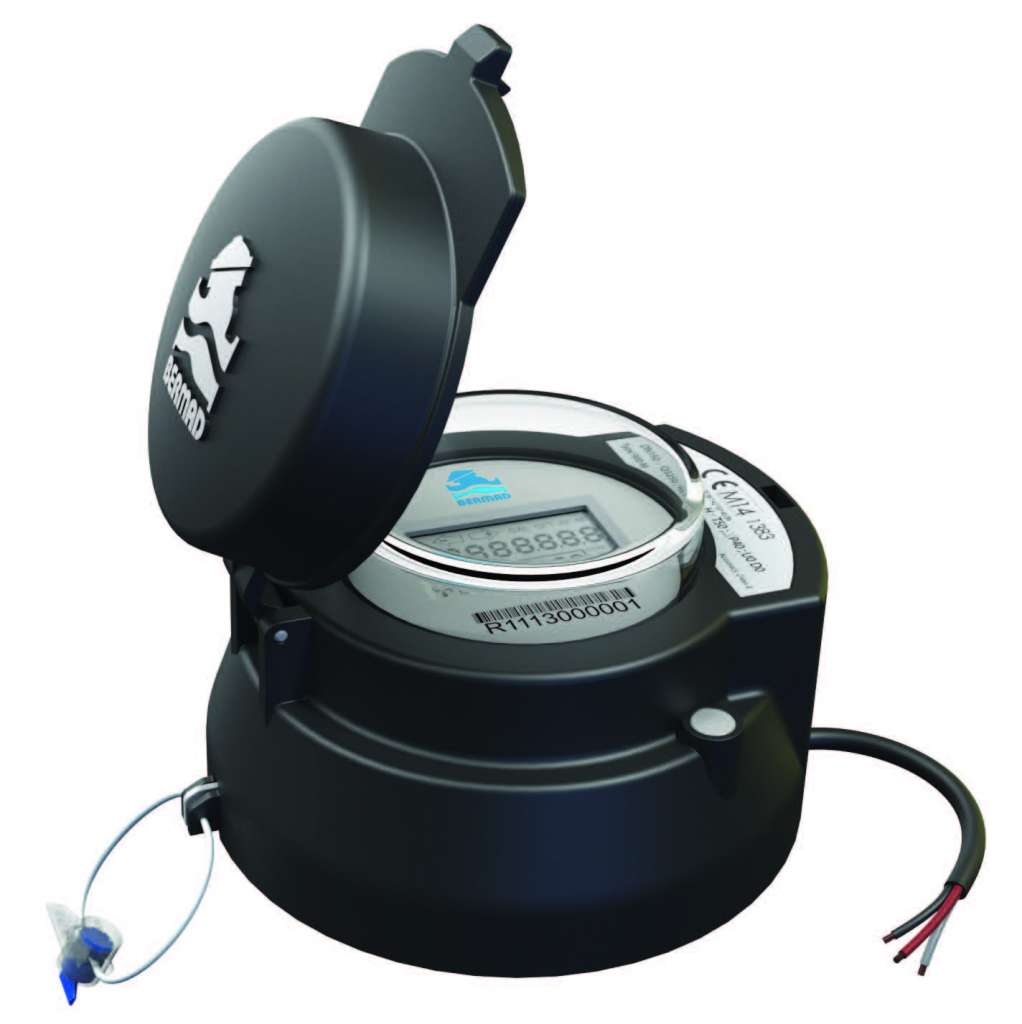

The BERMAD Hydrometer limits the flow to a constant preset maximum. An optional configuration on the valve is to have a battery powered electronic register, which displays both totalising flow and instant rate of flow.
